Automated Rod Feeder with Heavy-Duty Robot Stand for UR10e/16e.

Community design

Rod Dispenser with Heavy-Duty Robot Stand for UR10e/16e ideal for CNC Lathes tending. PLEASE REVIEW THIS DESIGN BEFORE PURCHASING.

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-PP-55278
Weight	196.65 kg
Dimensions (L x W x H)	999 x 2692 x 1493 mm
Application	Assembly
Assembly Time	29:18

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1
	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mmObsolete	4
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	2
	M18 Through-Beam (NPN Receiver & Transmitter) Photo-Electric Sensor (Sn = 6000mm)CE-SN-006-0001 - 110 X 110 X 30 mmObsolete	1
	Rubber BumperHW-BP-001-0002 - 50 X 80 X 43 mmShips next day	4
	M8 Spider KnobHW-CP-002-0001 - 45 X 44 X 44 mmObsolete	4
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	12
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips next day	14
	90x90mm Plastic End Cap, for ExtrusionsHW-EC-005-0001 - 12 X 90 X 90 mmShips next day	4
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmObsolete	8
	20mm Tooling BallHW-RP-001-0004 - 32 X 20 X 20 mmShips next day	2
	Screw-in Cable Tie MountHW-TW-001-0001 - 38 X 23 X 13 mmShips next day	8

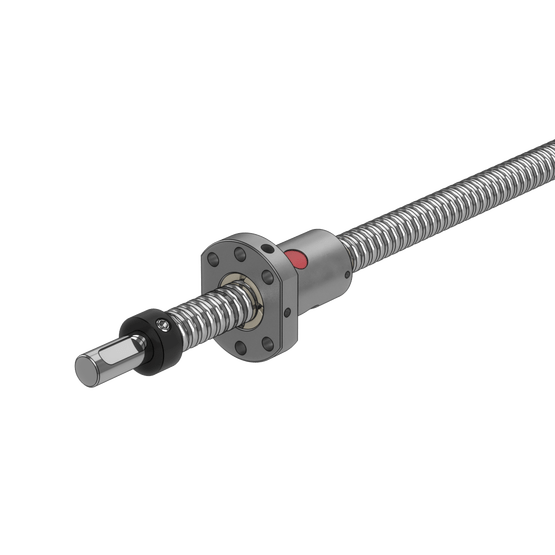

	905mm x 16mm OD Ball Screw with Ball Nut and Shaft CollarMO-BS-003-0905 - 905 X 40 X 48 mmObsolete	1

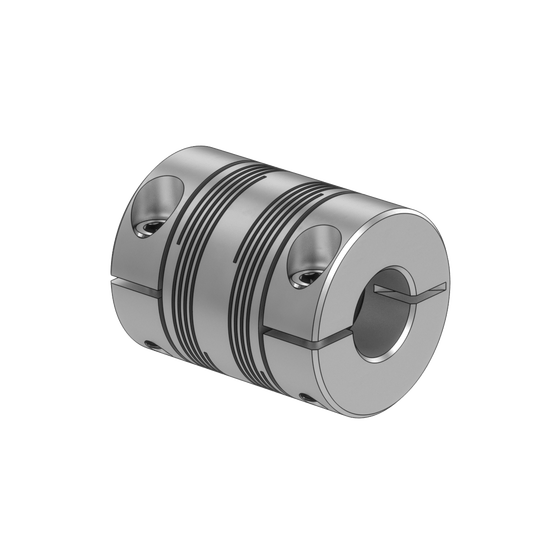

	Aluminum Helical Flexible Shaft CouplingMO-CP-001-0001 - 38 X 38 X 30 mmObsolete	1

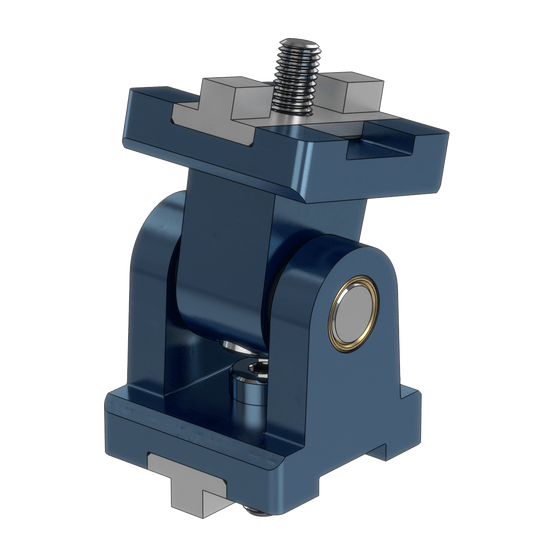

	45x45mm Hinge, 12mm Pin with BushingsMO-HG-002-0001 - 68 X 45 X 45 mmObsolete	3
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	4
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmObsolete	1

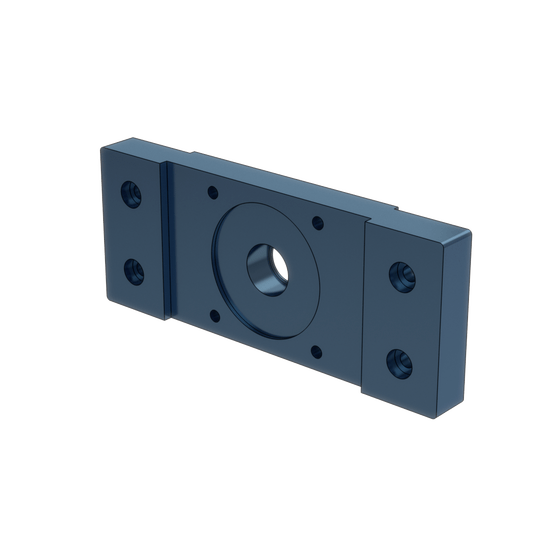

	Mounting Plate for Stepper MotorMO-LM-002-0002 - 22 X 225 X 90 mmObsolete	1

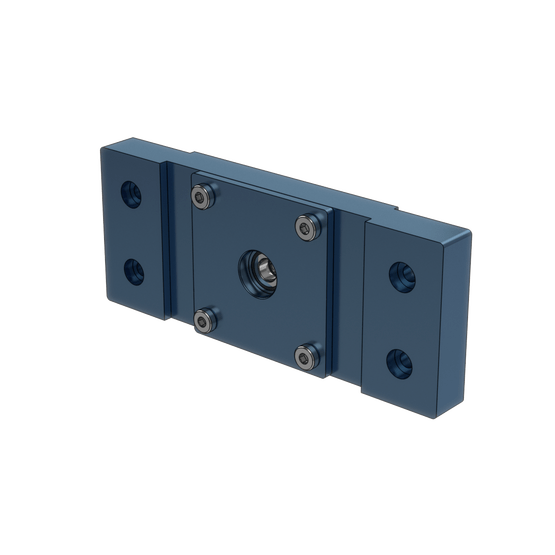

	Support Plate for Ball ScrewMO-LM-002-0009 - 22 X 225 X 90 mmObsolete	2
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips next day	8
	16mm Shaft for Linear Bearings (855mm)MO-LM-014-0855 - 855 X 31 X 33 mm	2
	100mm NEMA 34 Stepper MotorMO-SM-002-0001 - 168 X 86 X 86 mmObsolete	1
	Blickle Swivel Leveling Caster Wheel with Adjustment Wheel, 500kg CapacityMO-WL-003-0002 - 125 X 90 X 104 mmShips next day	4
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips in 7 days	7
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips in 7 days	3
	45x45mm (360mm) Aluminum ExtrusionST-EXT-001-0360 - 360 X 45 X 45 mmShips in 7 days	1
	45x45mm (450mm) Aluminum ExtrusionST-EXT-001-0450 - 450 X 45 X 45 mmShips in 7 days	3
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips in 7 days	8
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips in 7 days	2
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips in 7 days	3
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips in 7 days	2
	45x45mm (900mm) Aluminum ExtrusionST-EXT-001-0900 - 900 X 45 X 45 mmShips in 7 days	6
	45x45mm (1395mm) Aluminum ExtrusionST-EXT-001-1395 - 1395 X 45 X 45 mmShips in 7 days	2
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	10
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	2
	45x90mm (135mm) Aluminum ExtrusionST-EXT-002-0135 - 135 X 45 X 90 mmShips next day	2
	45x90mm (180mm) Aluminum ExtrusionST-EXT-002-0180 - 180 X 45 X 90 mmShips next day	2
	45x90mm (270mm) Aluminum ExtrusionST-EXT-002-0270 - 270 X 45 X 90 mmShips next day	5
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	2
	45x90mm (360mm) Aluminum ExtrusionST-EXT-002-0360 - 360 X 45 X 90 mmShips next day	5
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	2
	45x90mm (495mm) Aluminum ExtrusionST-EXT-002-0495 - 495 X 45 X 90 mmShips next day	2
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	2
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	2
	45x90mm (990mm) Aluminum ExtrusionST-EXT-002-0990 - 990 X 45 X 90 mmShips next day	2
	45x90mm (1215mm) Aluminum ExtrusionST-EXT-002-1215 - 1215 X 45 X 90 mmShips next day	2
	90x90mm (630mm) Aluminum ExtrusionST-EXT-005-0630 - 630 X 90 X 90 mmShips next day	4
	90x90mm (675mm) Aluminum ExtrusionST-EXT-005-0675 - 675 X 90 X 90 mmShips next day	2
	90x90mm (855mm) Aluminum ExtrusionST-EXT-005-0855 - 855 X 90 X 90 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	5
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	16
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	9
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	12
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	16
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	10
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips next day	14
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	6
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	10
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	4
	1x2 Hole Aluminum Assembly PlateST-GP-001-0016 - 6 X 88 X 43 mmShips in 4 days	2
	30 Degree Joint Aluminum Assembly PlateST-GP-001-0017 - 6 X 136 X 110 mmShips next day	4
	60 Degree Joint Aluminum Assembly PlateST-GP-001-0018 - 6 X 160 X 111 mmShips next day	6
	2x5 Hole Aluminum Assembly PlateST-GP-001-0019 - 223 X 88 X 6 mmShips next day	6
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	24
	UR10e/UR16e and FANUC CRX-10iA Mounting PlateST-RB-001-0008 - 225 X 225 X 22 mmShips next day	1
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1
	Floor Anchoring Mount for 45x45mm and 45x90mm ExtrusionsST-SE-001-0003 - 180 X 180 X 94 mmShips next day	6
	Height Locator for Dimensional JigST-SP-007-0008 - 90 X 45 X 55 mmShips next day	2
	Premium Caster Wheel Mounting Plate for MO-WL-003-0002ST-SP-010-0002 - 90 X 90 X 11 mmShips in 3 weeks	4
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.1433 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2948 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2948 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2633 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.2633 m²Obsolete	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.0654 m²Obsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	1013
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	17
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	81
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	915
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	5
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	4
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	7
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	13
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	4
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 20 X 0 X 0 mmShips next day	5
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	13
	M8 X1.25 Zinc Plated Thin Hex NutHW-FN-033-0002 - 13 X 13 X 4 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 1 X 16 X 16 mmShips next day	9
