Pneumatic Ecosystem Datasheet

Vention’s Pneumatic Ecosystem powered by SMC is a fully integrated plug-and-play system compatible with Vention digital engineering platform.

centered image

Contents

Overview

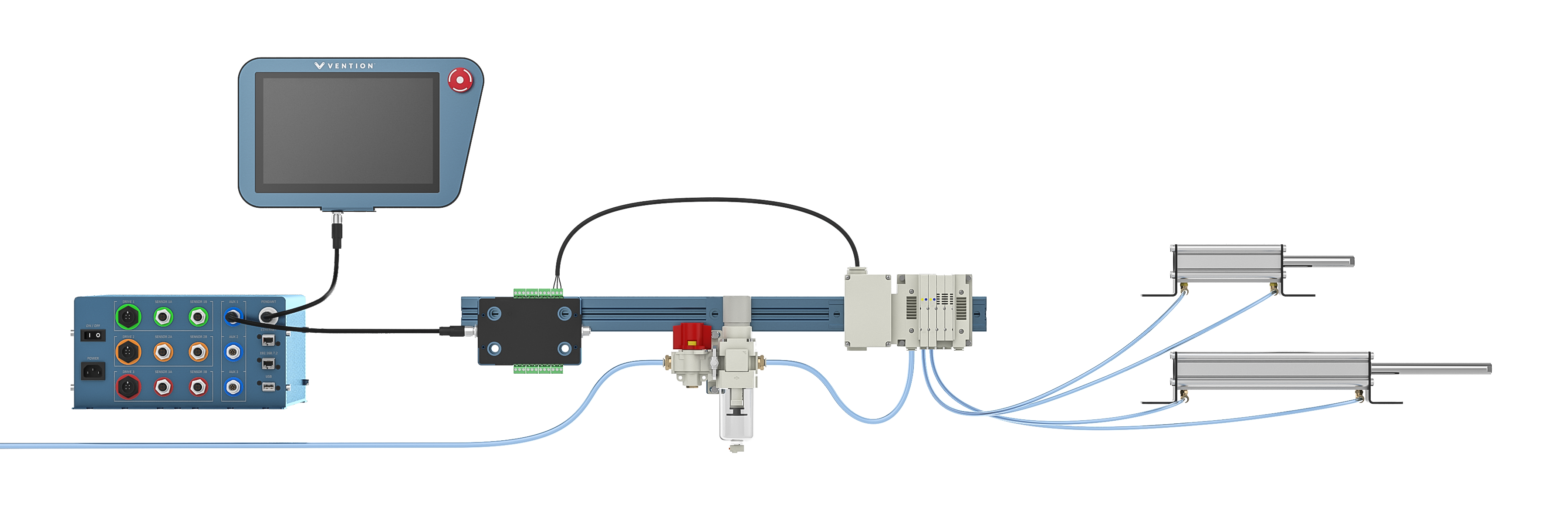

Vention has partnered with SMC, an industry leader in pneumatics, to bring you a series of pneumatic components. These components include an air preparation station complete with a pressure regulator, air filter and manual safety release valve, a manifold that supports up to four independent open-center valves that drive various lengths of double-acting cylinders. The entire system is controlled using Vention’s MachineMotion (CE-CL-005-0003) and IO Expander (CE-MD-001-0001).

Applications

There are several applications for the pneumatic ecosystem, including clamping and guidance systems.

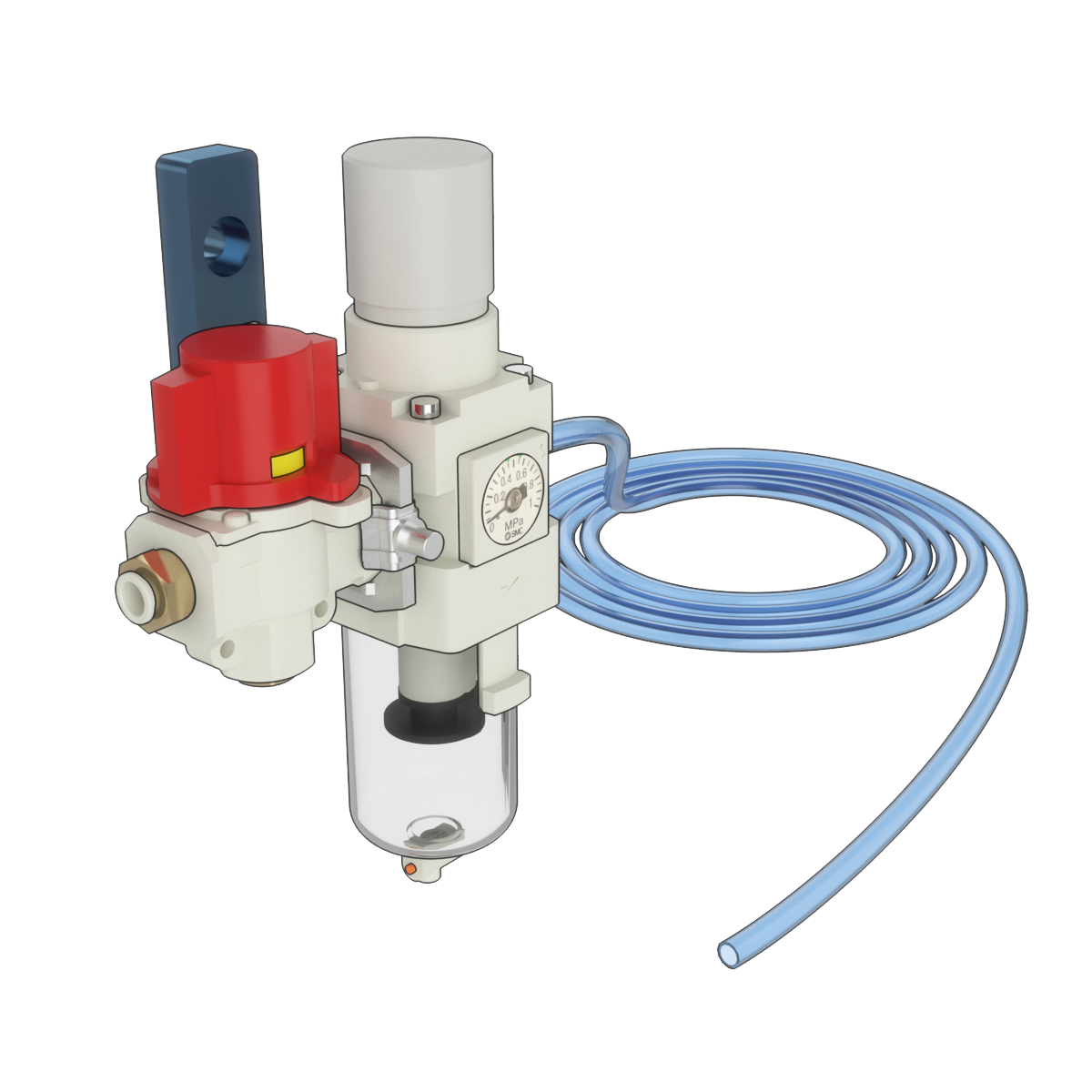

Air Preparation Station (CA-AP-001-0001)

centered image

centered image

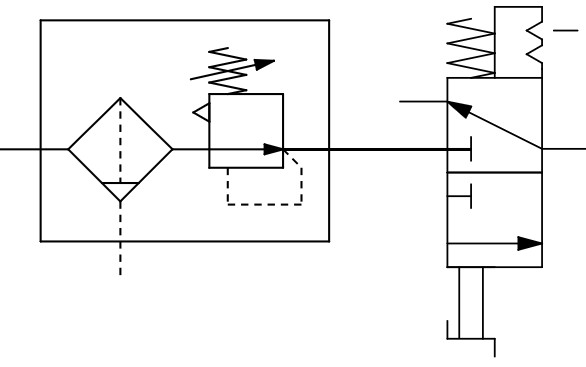

Air Preparation Station Symbol

Specifications

Operating Temperature [°C] -5 to 60
Maximum Operating Pressure [MPa] 1.0
Filter Drain Capacity [ml] 25
Filter Filtration Rating [μm] 5
Pressure Relief Valve Flow Coefficient (Cv) 2.3
Included Tubing 8mm OD Polyurethane Tubing - 2 meters in length


Manifold and Valves (CA-CO-001-0001/0002/0003/0004)

centered image

centered image

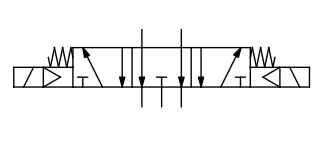

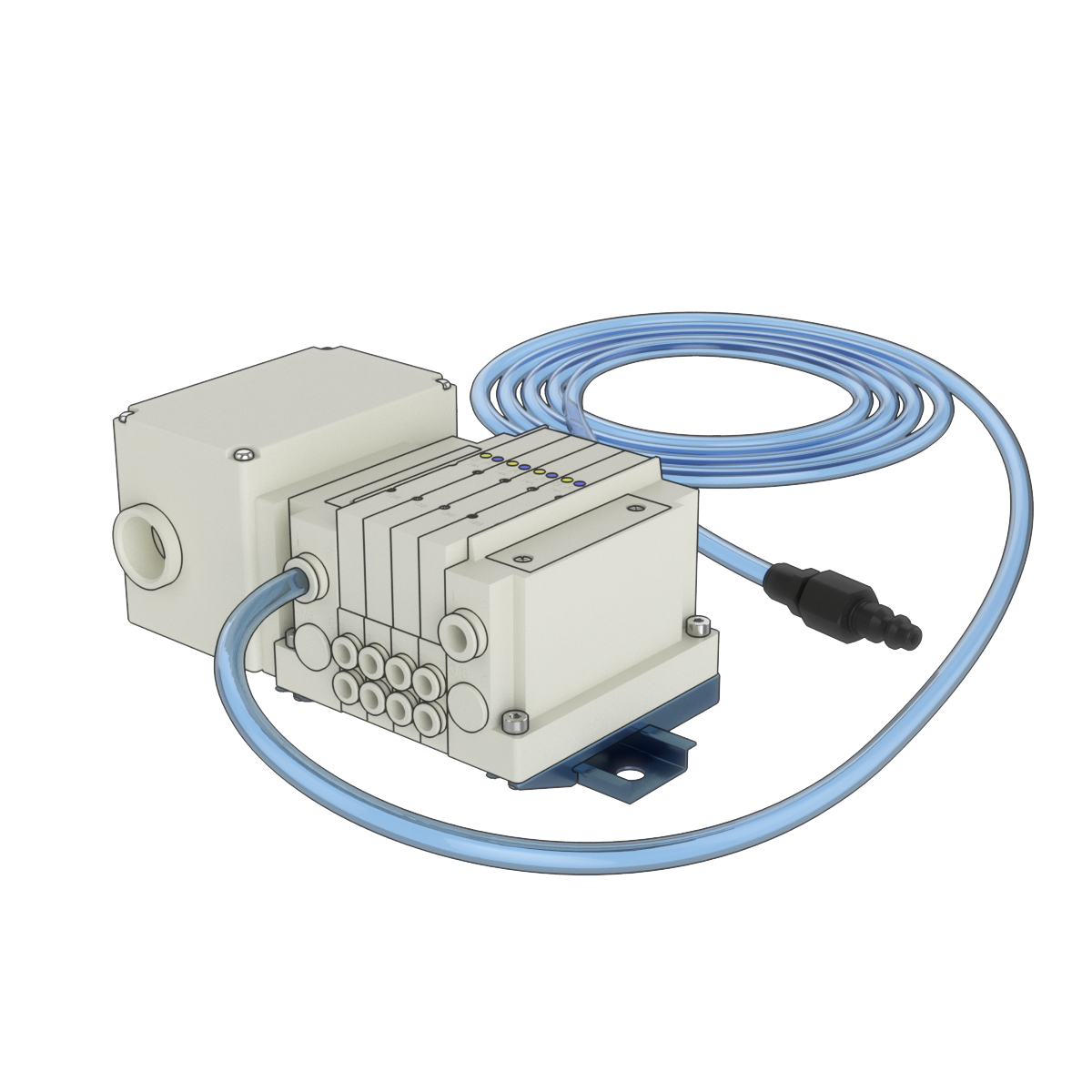

Manifold Station with Valves Valve Symbol

Specifications

Available Valve Stations 1 to 4
Operating Temperature [°C] -10 to 50
Maximum Operating Pressure [MPa] 0.7
Minimum Operating Pressure [MPa] 0.2
Control Voltage [V] 24
Maximum Power Consumption [W] 0.35
Enclosure Rating IP67
Included Tubing 8mm OD Polyurethane Tubing - 2 meters in length with industrial standard male 1/4" quick connector

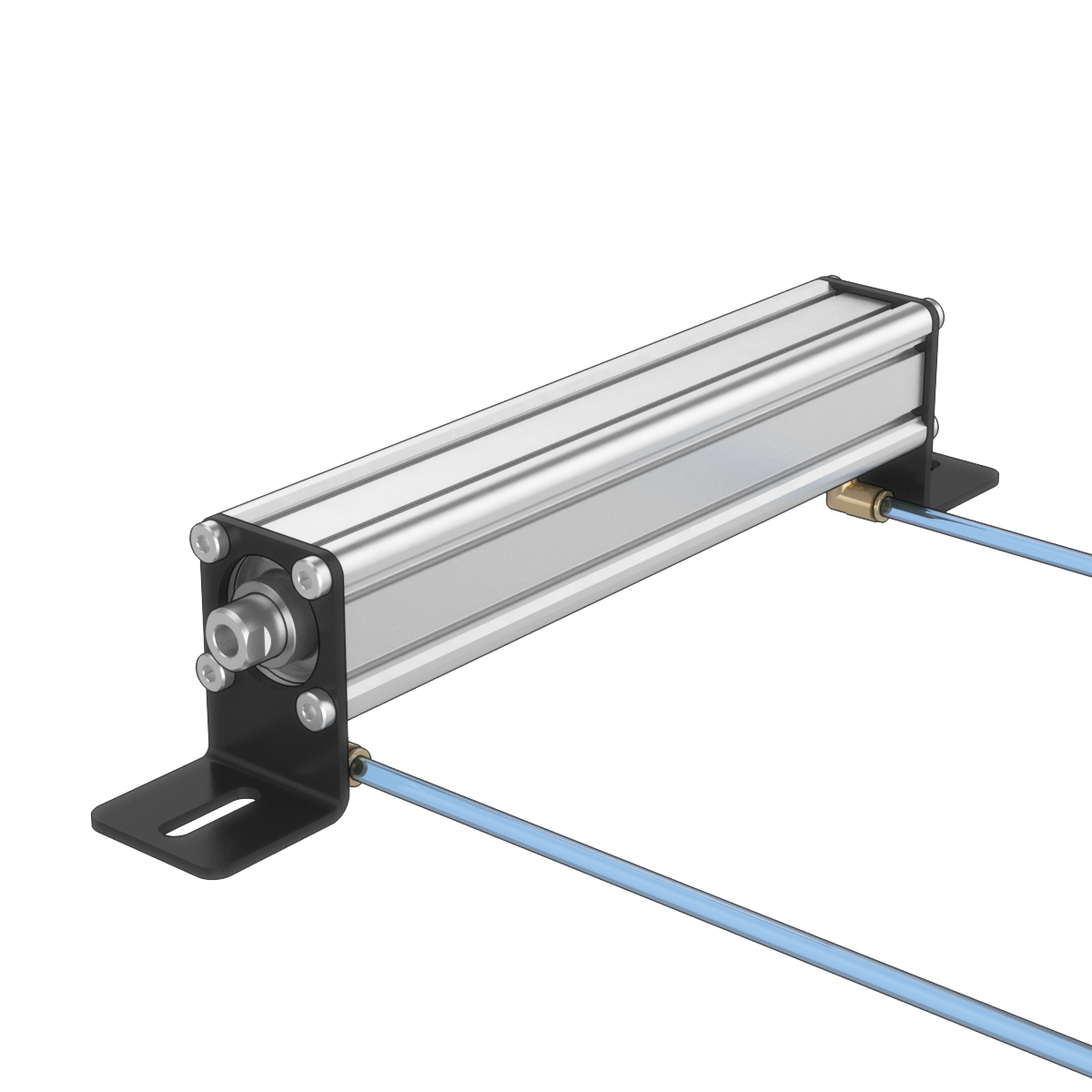

Actuators (CA-CY-001-0100/0200)

centered image

centered image

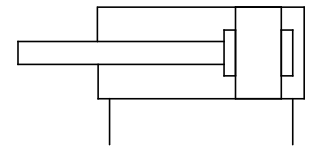

Actuator Symbol

Specifications

Available Stroke Lengths [mm] 100, 200
Bore Size [mm] 32
Operating Temperature [°C] -5 to 60
Maximum Operating Pressure [MPa] 0.7
Minimum Operating Pressure [MPa] 0.18
Recommended Operating Pressure [MPa] 0.45 to 0.55
Piston Speed [mm/s] 5 to 300
Included Tubing 6mm OD Polyurethane Tubing - 6 meters in length

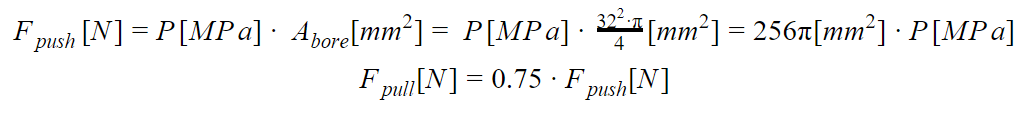

The effective pushing and pulling force can be calculated as follows:

centered image

Actuator Force Output

centered image

Pressure P [MPa] 0.5 0.6 0.7 (Maximum)
Pushing Force (Out) [N] 402 483 563
Pulling Force (In) [N] 302 362 422

Note: The lateral (radial) load at the rod end should never exceed 4N
