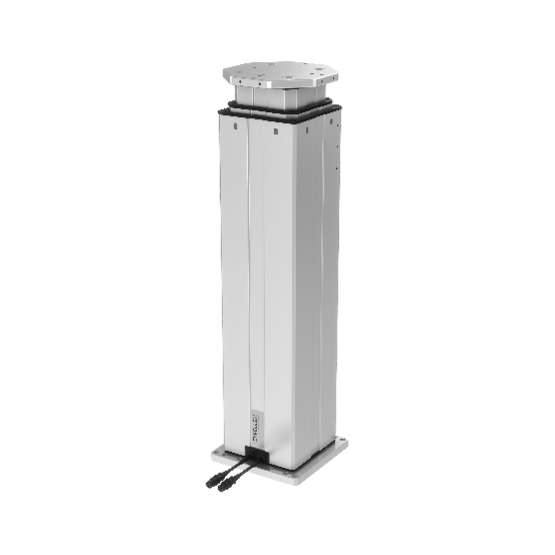

Telescopic Lift Column for UR - 900mm stroke

Telescopic Lift Column for UR - 900mm stroke

$6,579.52 USD
Obsolete
Vertical axis for collaborative robots (Cobots). The easy-to-assemble LIFTKIT increases the reach of the Cobot by moving it along a vertical axis, which is particularly useful for palletizing applications . The base of the Cobot can be raised or lowered during operations so that it is always in an optimum working position. This increased range improves productivity and reduces costs. The UR-LIFTKIT is a ready-to-install system and includes a telescopic column with a UR mounting interface, a controller and a software plug-in for robots from Universal Robots (UR Cap) so that movements can be programmed directly via the UR controller. The UR mounting plate and column are equipped with additional threaded holes so that external cable systems can be connected. Push load: 1500N. Pull load: 0. Type of protection: IP40. Max speed no load: 80 mm/s. Duty cycle: 10%. Positioning repeatability: +/- 1 mm. Compatibility: UR3, UR5, UR10, UR16, e-series.
Quantity:
Start a new design
Use desktop to design

General Specifications

Spec Attribute Spec Value
Part Number PR-EW-001-0309
Weight 40.0 kg
Dimensions (L x W x H) 755.0 x 200.0 x 323.0 mm
Unit Price $6,579.52 USD
Associated Fasteners 8 x HW-FN-002-0001 , 8 x HW-FN-002-0004 , 8 x HW-FN-003-0018 , 8 x HW-FN-005-0020

Technical Specifications

Spec Attribute Spec Value
Reach 900 mm
Load Capacity 1500 N
Repeatability 1 mm
IP Rating IP40
